Quartz standard mirror
Quartz standard mirror
Processing Capabilities
| Product Name | Specification Range (MM) | Surface Figure | RMS | Surface Finish | Angle (Parallelism) |
| Quartz Reference Mirror | D2-D450 | PV1/20 | RMS 1/100 | 20-10 | ≥15′ |
Product Description
| Product Name | Specification (MM) | Surface Figure | RMS | Surface Finish | Angle (Parallelism) |
| Quartz Reference Mirror | D450 | PV1/20 | RMS 1/100 | 20-10 | ≥15′ |
| Name | Fused Silica Reference Mirror |
| Specifications | D230mm |
| Material | 7980 0F Fused Silica |
| Diameter Tolerance | +0.0/-0.1mm |
| Thickness Tolerance | ±0.1mm |
| Angle Tolerance | 15 ′±1 ′ |
| Surface Profile | PV λ/20 @633nm |
| Surface Finish | 40/20 |
| Edge Chamfer | 1*45° |

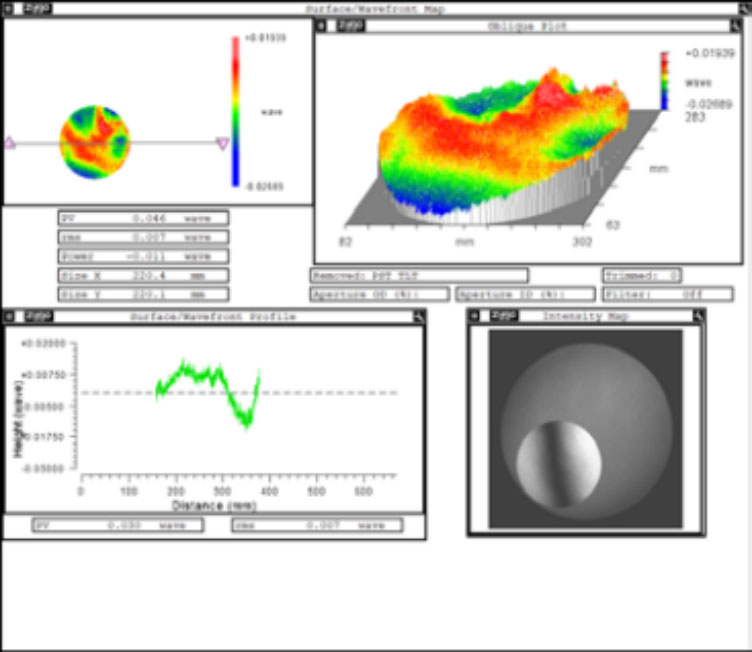

Surface Figure Report
