Monocrystalline silicon mirror
Monocrystalline silicon mirror
Processing Capabilities
| Product Name | Specification Range (MM) | Surface Figure | RMS | Surface Finish | Angle (Parallelism) |
| Monocrystalline Silicon Reflector | D2-D600 | PV1/10 | RMS 1/50 | 20-10 | ±30′ |
Product Description
| Product Name | Specification (MM) | Surface Figure | RMS | Surface Finish | Angle (Parallelism) |
| Monocrystalline Silicon Reflector | 100*120*10 | PV1/10 | RMS 1/50 | 20-10 | ±30′ |
| Name | Monocrystalline Silicon (Si) Reflector |
| Specifications | 100*120*10mm |
| Material | Monocrystalline Silicon (Si) |
| Profile Tolerance | +0.00/-0.1mm |
| Thickness Tolerance | ±0.05mm |
| Parallelism | 30″ |
| Surface Profile | PVλ/6 @633nm |
| RMS | λ/30 @633nm |
| Surface Finish | 40/20 |
| Edge Chamfer | 0.5*45° |

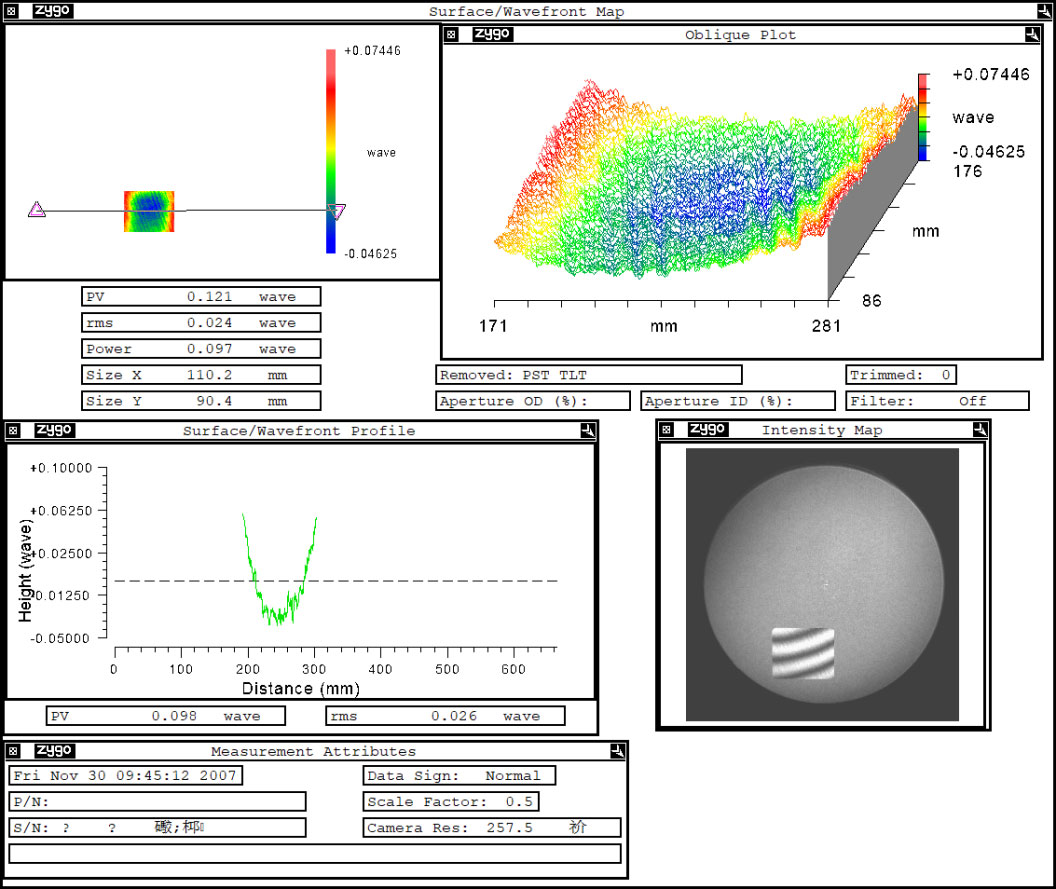

Surface Figure Report
Cooperation & Contact
Shichengzhiguang specializes in customization and processing of high-precision optical components. We provide classical ring polishing, customized product development and full-process technical support for customers in fields such as optical instruments, laser equipment, aerospace and medical devices. We also undertake industry-university-research cooperation projects to facilitate the transformation and implementation of technological achievements.
Optical Component Customization Cooperation：
+86-15111908361 、 17783067086
15111908361@163.com
Industry-University-Research Project Cooperation：
17783067086@163.com
