Sapphire window mirror
Sapphire window mirror
Processing Capabilities
| Product Name | Specification Range (MM) | Surface Figure | RMS | Surface Finish | Angle (Parallelism) |
| Sapphire Window | D2-D500 | PV1/10 | RMS 1/50 | 20-10 | ≥2″ |
Product Description
| Product Name | Specification (MM) | Surface Figure | RMS | Surface Finish | Angle (Parallelism) |
| Sapphire Window | D380*15 | PV1/10 | RMS 1/50 | 20-10 | ≥2″ |
| Item | Specification |
| Name | Sapphire Window |
| Dimension | D380*15 (MM) |
| Material | Sapphire |
| Diameter Tolerance | +0.0/-0.1mm |
| Thickness Tolerance | ±0.05mm |
| Transmissive Surface Figure | PV λ/4@633nm |
| Parallelism | ＜5″ |
| Edge Chamfer | 0.5*45° |

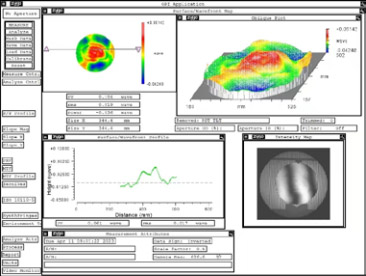

Surface Figure Report
Cooperation & Contact
Shichengzhiguang specializes in customization and processing of high-precision optical components. We provide classical ring polishing, customized product development and full-process technical support for customers in fields such as optical instruments, laser equipment, aerospace and medical devices. We also undertake industry-university-research cooperation projects to facilitate the transformation and implementation of technological achievements.
Optical Component Customization Cooperation：
+86-15111908361 、 17783067086
15111908361@163.com
Industry-University-Research Project Cooperation：
17783067086@163.com
