Zerodur mirrors
Zerodur mirrors
Processing Capabilities
| Product Name | Specification Range (MM) | Surface Figure | RMS | Surface Finish | Angle (Parallelism) |
| Zerodur Reflector | D2-D650 | PV1/10 | RMS 1/70 | 20-10 | ＜30″ |
Product Description
| Product Name | Specification (MM) | Surface Figure | RMS | Surface Finish | Angle (Parallelism) |
| Zerodur Reflector | D520 | PV1/10 | RMS 1/70 | 20-10 | ＜30″ |
| Name | Zerodur Mirrors |
| Specifications | Dia 520mm |
| Material | Schott O-Grade Zerodur (Zero Thermal Expansion Glass-Ceramic) |
| Diameter Tolerance | +0.0/-0.2mm |
| Thickness Tolerance | ±0.1mm |
| Surface Profile | PVλ/10 @633nm |
| Parallelism | < 30″ |
| Surface Quality | 20/10 |
| Bevel | 1mm*45° |

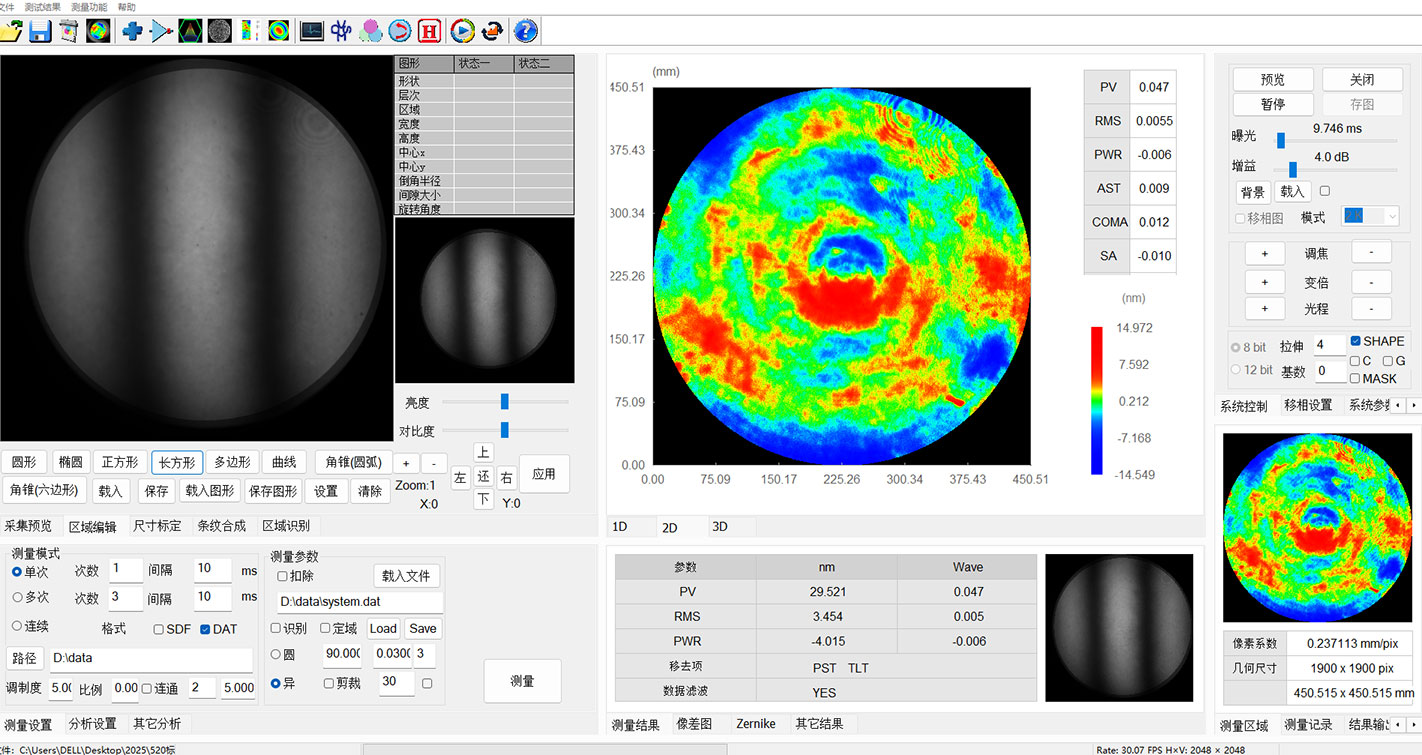

Surface Figure Report
Cooperation & Contact
Shichengzhiguang specializes in customization and processing of high-precision optical components. We provide classical ring polishing, customized product development and full-process technical support for customers in fields such as optical instruments, laser equipment, aerospace and medical devices. We also undertake industry-university-research cooperation projects to facilitate the transformation and implementation of technological achievements.
