Quartz Mirror
Quartz Mirror
Processing Capabilities
| Product Name | Specification Range (MM) | Surface Figure | RMS | Surface Finish | Angle (Parallelism) |
| Quartz Reflector | D2-D650 | PV1/10 | RMS 1/70 | 20-10 | Parallelism 1′ |
Product Description
| Product Name | Specification (MM) | Surface Figure | RMS | Surface Finish | Angle (Parallelism) |
| Quartz Reflector | D450 | PV1/10 | RMS 1/70 | 20-10 | Parallelism 1′ |
| Name | Bore Mirrors |
| Specifications | Dia 450mm |
| Material | JGS1 (Quartz Glass) |
| Diameter Tolerance | +0.0/-0.15mm |
| Thickness Tolerance | ±0.1mm |
| Parallelism | 1′ |
| Surface Flatness | PVλ/10 @633nm |
| Surface Quality | 20/10 |
| Bevel | 1mm*45° |

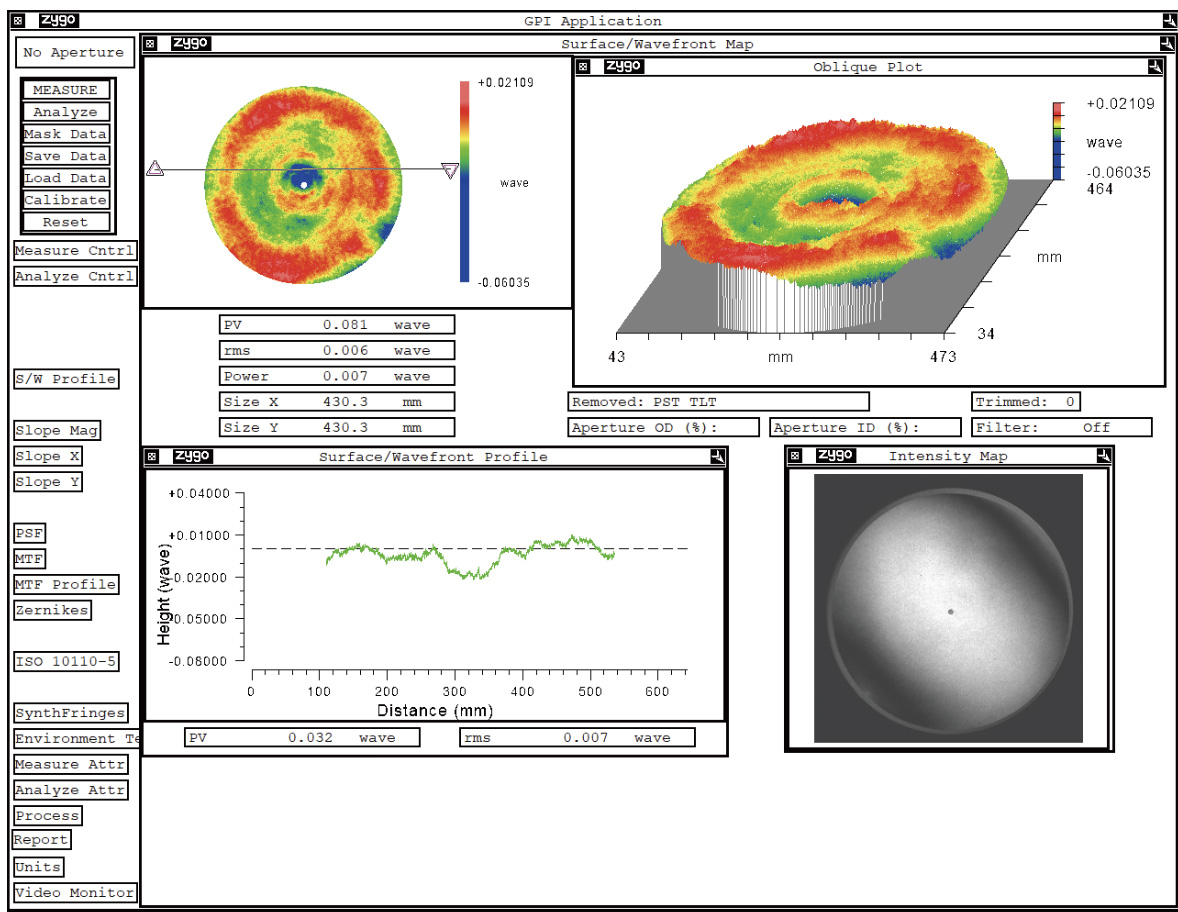

Surface Figure Report
