Special-shaped reflector
Special-shaped reflector
Processing Capabilities
| Product Name | Specification Range (MM) | Surface Figure | RMS | Surface Finish | Angle (Parallelism) |
| Zerodur Reflector | D2-D650 | PV1/10 | RMS 1/70 | 20-10 | ＜30″ |
Product Description
| Product Name | Specification (MM) | Surface Figure | RMS | Surface Finish | Angle (Parallelism) |
| Zerodur Reflector | D520 | PV1/10 | RMS 1/70 | 20-10 | ＜30″ |
| Name | Zerodur Mirror |
| Specifications | 60*84*18mm |
| Material | Zerodur |
| Profile Tolerance | ±0.1mm |
| Thickness Tolerance | ±0.05mm |
| Parallelism | 1 ′ |
| Surface Profile | PV λ/15 @633nm |
| Surface Finish | 20/10 |
| Edge Chamfer | 0.3*45° |

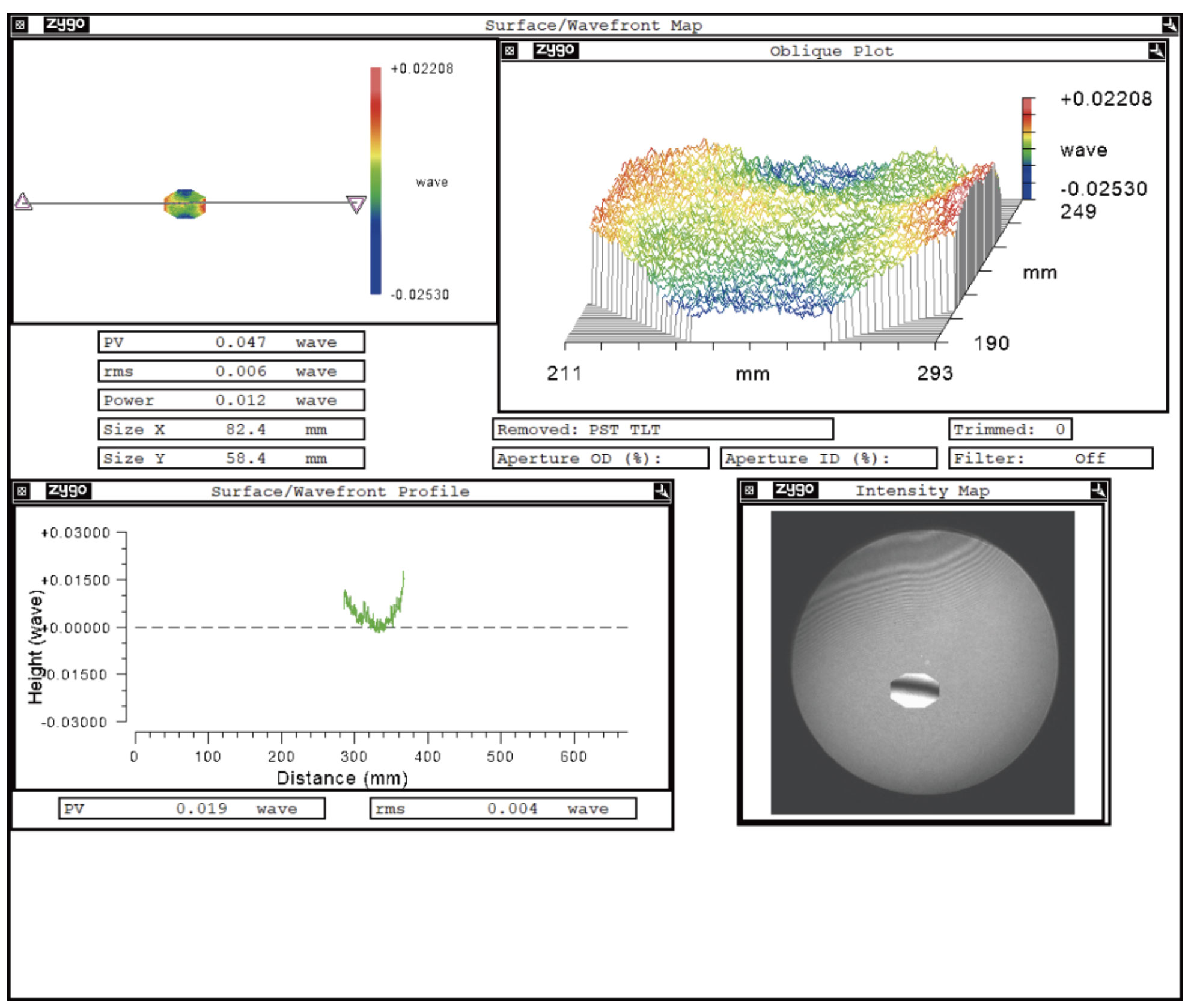

Surface Figure Report
Cooperation & Contact
Shichengzhiguang specializes in customization and processing of high-precision optical components. We provide classical ring polishing, customized product development and full-process technical support for customers in fields such as optical instruments, laser equipment, aerospace and medical devices. We also undertake industry-university-research cooperation projects to facilitate the transformation and implementation of technological achievements.
Optical Component Customization Cooperation：
+86-15111908361 、 17783067086
15111908361@163.com
Industry-University-Research Project Cooperation：
17783067086@163.com
