Perforated mirror
Perforated mirror
Processing Capabilities
| Product Name | Specification Range (MM) | Surface Figure | RMS | Surface Finish | Angle (Parallelism) |
| Zerodur Reflector | D2-D650 | PV1/10 | RMS 1/70 | 20-10 | ＜30″ |
Product Description
| Product Name | Specification (MM) | Surface Figure | RMS | Surface Finish | Angle (Parallelism) |
| Zerodur Reflector | D520 | PV1/10 | RMS 1/70 | 20-10 | ＜30″ |
| Name | Zerodur Mirror |
| Specifications | 475*36*52mm |
| Material | Zerodur |
| Profile Tolerance | ±0.05mm |
| Thickness Tolerance | ±0.05mm |
| Parallelism | 2″ |
| Angle Tolerance | 2″ |
| Surface Profile | PV λ/10 @633nm |
| RMS | λ/80 @633nm |
| Surface Finish | 20/10 |
| Edge Chamfer | 1*45° |

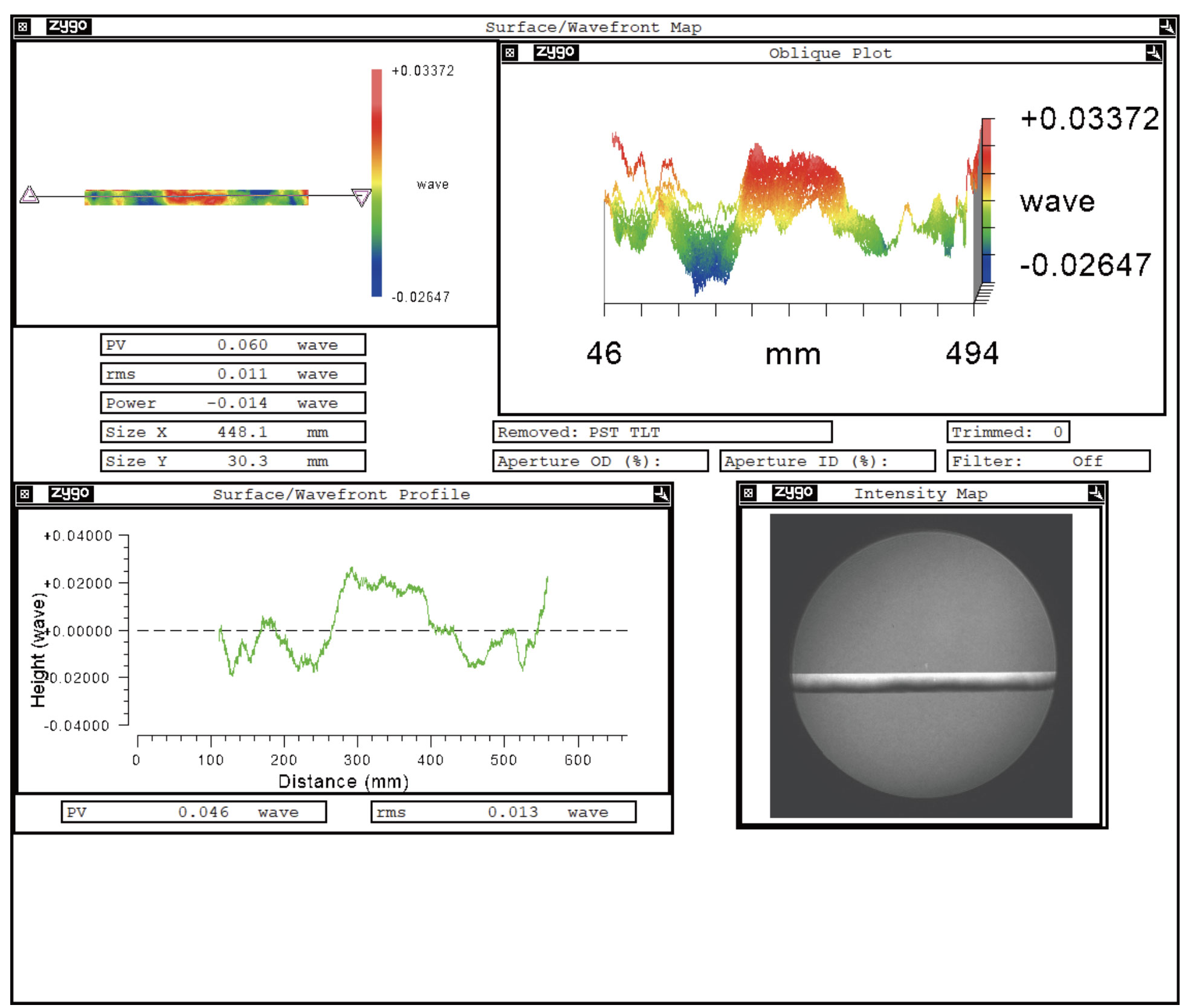

Surface Figure Report
Cooperation & Contact
Shichengzhiguang specializes in customization and processing of high-precision optical components. We provide classical ring polishing, customized product development and full-process technical support for customers in fields such as optical instruments, laser equipment, aerospace and medical devices. We also undertake industry-university-research cooperation projects to facilitate the transformation and implementation of technological achievements.
